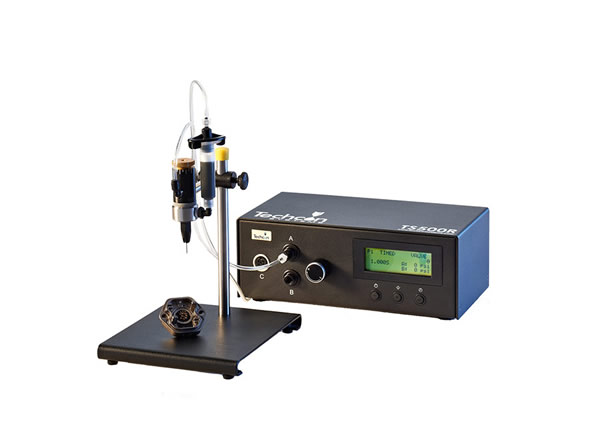

TECHCON TS500R Glue Dispensing Machine Controller
TECHCON TS500R Glue Dispensing Machine Controller
Features of TS500R dispensing controller:
1. Control all pneumatic valves, such as diaphragm valve, spray valve, striker valve and screw valve;
2. Dotting, marking, spraying, and filling;
3. Word timing range: 0.008-60.000 seconds;
4. Store 10 dispensing programs to flexibly respond to changes in dispensing volume at different points;
5. There are four dispensing modes: timed, jog, teach, and interrupt;
6. S232 interface and foot switch trigger control achieve automated dispensing;
7. Adjust the low voltage alarm function;
● Product Description ●
Techcon Systems TS500R dispensing controller can be used to control all kinds of pneumatic valves, such as diaphragm valve, impact valve, piston valve, spray valve, screw valve and screw valve with encoder motor. It can carry out dispensing processes such as dotting, scribing and filling with high precision, and is widely used in the fields of electronics, optics, packaging, automobile, medical care, jewelry, toys, etc.
The time and pressure of the TS500R dispensing controller are displayed digitally and can be precisely adjusted. The controller can be programmed with 10 different dispensing, sequential dispensing, or individual dispensing programs. Diversified dispensing modes, including timed, jog, teaching, and interrupt dispensing modes. Among them, the "teaching mode" can help determine the dispensing time required for dispensing when the dispensing amount is unknown.
Application of TS500R dispensing controller:
Adhesive, packaging, sealing, filling, dot coating, line coating, etc. for automobiles and spare parts, consumer electronics, semiconductors and microelectronics, optical products, medical equipment and consumables, optical communication products.
Features of TS500R dispensing controller:
1. Control all pneumatic valves, such as diaphragm valve, spray valve, striker valve and screw valve; 2. Dotting, marking, spraying, and filling;
3. Word timing range: 0.008-60.000 seconds;
4. Store 10 dispensing programs to flexibly respond to changes in dispensing volume at different points;
5. There are four dispensing modes: timed, jog, teach, and interrupt;
6. S232 interface and foot switch trigger control achieve automated dispensing;
7. Adjust the low voltage alarm function;
Specification of TS500R dispensing controller:
| Appearance dimensions (W * D * H): | 259mm x 191mm x 99mm |
| Cycle rate: | Cycle 900 times per minute |
| Timing range: | 0.008-60.000 seconds |
| Timing repetition accuracy: | /- 0.001% |
| Input air pressure: | Maximum 100psi (6.9bar) |
| Output air pressure: | 1 – 100psi (0.07 – 6.9bar) |
| Glue dispensing mode: | Timer, jog, teaching, interrupt mode |
| authentication: | CE, TUV-GS, and NRTL |
| guarantee: |
2 years |
